PRODUCTS
SPECIFICATIONS
-
Voltage Range 0.2kV to 20.0kV
-
Operating Temperature 14 to 122°F (-10°C to 50°C)
-
Operating Humidity < 95% RH
-
Accuracy ±(5% reading + 5digits)
-
Power Supply 3 AAA batteries
-
Weight (with batteries) 123g(4.3oz)
-
Dimensions 180x29x29mm(7.1x1.1x1.1")
Product | 1
Smart Check
FEATURES
-
Equipped with state-of-the-art Microprocessor
-
High Precision Peak Voltage Detection
-
High Sensitivity Design
- No need for Earth Lead
- Ideal for measuring Energizer Ground Voltage
-
Authentic H.V.(High Voltage) Probe Design
- No risk of Electric Shock
-
Beeper and flashing LED to indicate presence of H.V. pulse
-
Ultra bright three digit LED Display
-
Automatic Dim/Bright Control of Display
-
Automatic Power on/off to Conserve Battery
-
Over-range and Low Battery Indication
-
Shock-resistant Polycarbonate and Aluminum Alloy Housing
-
Water resistant to IP65 Standards
-
Complete with three AAA battery and carrying pouch
INTRODUCTION TO SMART CHECK (VIDEO)
The content of this video is as follows:
1. Product features and specifications
2. How to use Smart Check for remote checking of fence energization
3. How to measure electric fence voltage accurately
4. How to save reading to memory, and read display from memory
SPECIFICATIONS
-
Voltage Range 0.2kV to 20.0kV
-
Current Range 0.5A to 25.0A
-
Operating Temperature 14 to 122°F (-10°C to 50°C)
-
Operating Humidity < 95% RH
-
Accuracy (Voltage) ±(5% reading + 5digits)
-
Accuracy (Current) ±(5% reading + 5digits)
-
Power Supply 3 AAA batteries
-
Weight (with batteries) 127g (4.5oz)
-
Dimensions 190x29x29mm (7.5x1.1x1.1")
Product | 2
Smart Check-Pro
FEATURES
-
Multimeter Tester for Electric Fence Maintenance
- Provides Voltage and Current readings, and Fault Direction
-
High Precision Peak Voltage and Peak Current Detection
-
High Sensitivity Design
- No need for Earth Lead
- Ideal for measuring Energizer Ground Voltage
-
Authentic H.V.(High Voltage) Probe Design
- No risk of Electric Shock
-
Beeper and flashing LED to indicate presence of H.V. pulse
-
Ultra bright three digit LED Display with Brightness Control
-
Automatic Power on/off to Conserve Battery
-
Over-range and Low Battery Indication
-
Shock resistant Polycarbonate and Aluminum Alloy Housing
-
Water resistant to IP65 Standards
-
Complete with three AAA battery and carrying pouch
INTRODUCTION TO SMART CHECK-PRO (VIDEO)
The content of this video is as follows:
1. Product features and specifications
2. How to use Smart Check-Pro for remote checking of fence energization
3. How to measure electric fence voltage, current & fault position
SPECIFICATIONS
-
Operating Temp -25 ~ 70°C (-13 ~ 158°F)
-
Battery Ni-MH 2.4V 40mAh
-
LED 2 ultra bright red LEDs
-
Light Intensity 20 cd(candela)
-
Viewing Angle 120 degree
-
Water Resistance PCB Encapsulation
-
Weight 91g (3.2oz)
-
Dimensions 55×45×110mm (2.1×1.8×4.3")
Product | 3
Smart Light
SL-750
FEATURES
-
Easy to Install – Once Smart Light is installed 10-20cm apart from the fence wire, the Unit is automatically calibrated and ready for operation.
-
No Contact Failure – There exists absolutely no contact failure between Smart Light and fence wire. This makes the Unit ideal for polywire or polytape fences.
-
No Voltage Drop – Smart Light never causes voltage drop on the fence wire. This makes the Unit particularly suitable for the fences with a small capacity energizer.
-
Multi-Level Indicator – ① Normal, ② Low, ③ Very Low, and ④ No Voltage levels are indicated by a combination of ultra bright LED flashes.
-
Animal Repellent – Ultra bright LED flashes can prevent animal access.
-
High Visibility – Provides day and night visibility (750m at night).
-
Solar Powered – Rechargeable battery system ensures long-term maintenance free.
INSTALLATION EXAMPLES
For T-posts, no additional grounding is required as the post itself can act as a ground rod. For wood or plastic posts, grounding is required. When using a galvanized wire for grounding, connect one end to the Bracket and bury the other end in the moist ground about 30cm.
One of the simple installation is to mount the Unit on a separate steel post. We recommend 3/4 to 1 inch galvanized or stainless steel pipe as the post.
T-Post
Wood Post
Steel Post
FOUR STEP FENCE VOLTAGE INDICATION
Smart Light is not a simple electric fence light indicating the presence of the fence voltage. Smart Light analysis the state of the electric fence voltage into four steps. These steps are indicated by the flashing pattern of LEDs. The Reference Voltage is reset by the current fence voltage when the switch is pushed.
Flashing pattern of Smart Light according to fence voltage
INTRODUCTION TO SMART LIGHT SL-750 (VIDEO)
The content of this video is as follows:
1. Product features and specifications
2. How it works
3. Installation examples and considerations
SPECIFICATIONS
-
Operating Temp -25 ~ 70°C (-13 ~ 158°F)
-
Battery Ni-MH 2.4V 40mAh
-
LED 2 ultra bright red LEDs
-
Light Intensity 20 cd(candela)
-
Viewing Angle 120 degree
-
Water Resistance PCB Encapsulation
-
Weight 48g (1.7oz)
-
Dimensions 55×69×26mm (2.1×2.7×1.0")
Product | 4
Smart Light
SL-750 CLIP
FEATURES
-
Easy to Install – Once Smart Light is installed 10-20cm apart from the fence wire, the Unit is automatically calibrated and ready for operation.
-
No Contact Failure – There exists absolutely no contact failure between Smart Light and fence wire. This makes the Unit ideal for polywire or polytape fences.
-
No Voltage Drop – Smart Light never causes voltage drop on the fence wire. This makes the Unit particularly suitable for the fences with a small capacity energizer.
-
Multi-Level Indicator – ① Normal, ② Low, ③ Very Low, and ④ No Voltage levels are indicated by a combination of ultra bright LED flashes.
-
Animal Repellent – Ultra bright LED flashes can prevent animal access.
-
High Visibility – Provides day and night visibility (750m at night).
-
Solar Powered – Rechargeable battery system ensures long-term maintenance free.

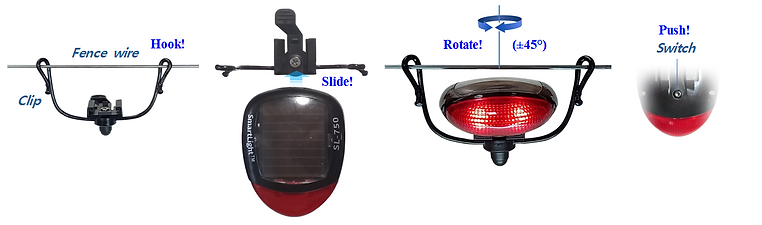

INSTALLATION STEPS
SL-750 CLIP is easy to install without any tools by following these steps.
-
Place the Clip on the electric fence wire. The Clip is easily fastened to the electric fence wire by pushing the clip hook against the wire.
-
Insert the Unit into the Clip by sliding the Rail Mount of the Unit into the Shoe Mount of the Clip.
-
Adjust the direction angle of the Unit so that the LED flashes are well observed.
-
Then, as a final step, energize the fence and push the switch at the bottom.
.png)
Installation Steps for Smart Light SL-750 CLIP
INTRODUCTION TO SMART LIGHT SL-750 CLIP (VIDEO)
The content of this video is as follows:
1. Product features and specifications
2. How it works
3. Installation examples and considerations
LONG-TERM PERFORMANCE TESTING OF SMART LIGHT INDICATORS (VIDEO)
Smart Light SL-750 and SL-750 Clip are undergoing long-term testing at our test facility.
-
#1 and #2 are initial versions of SL-750 and SL-750 Clip, respectively, both installed five years ago.
-
#3 and #4 are improved versions of SL-750 and SL-750 Clip, installed three years ago.
-
#5 and #6 are commercial versions of SL-750 and SL-750 Clip, installed one year ago.
They have been working as intended for many years in Korea’s harsh four-season climate.
